ELV Injection Grout ELV — Built to Last
India’s trusted high-performance elv injection grout solution. Engineered for superior durability, reliable performance, and long-lasting protection across residential, commercial, and industrial construction applications.
Explore Features ↓What is Epoxy Injection Grout (ELV)?
Epoxy Injection Grout (ELV) is a premium-grade, solvent-free two-component ultra-low viscosity epoxy resin system specially engineered for the structural repair and strengthening of cracked concrete. Its water-like consistency enables deep penetration into extremely fine cracks and voids, restoring damaged concrete to its original monolithic strength.
Designed for gravity-fed or low-pressure injection, ELV epoxy grout easily penetrates hairline cracks as narrow as 0.05 mm, filling internal voids that conventional repair materials cannot reach. Once cured, it forms an exceptionally strong structural bond that often exceeds the tensile strength of the surrounding concrete.
Unlike conventional crack fillers, Epoxy Injection Grout (ELV) cures without shrinkage, creating a permanent waterproof seal that prevents further moisture ingress while restoring structural continuity. Its moisture-insensitive formulation also allows effective bonding in damp cracks, making it ideal for underground and below-grade concrete repairs.
Epoxy Injection Grout (ELV) is ideal for repairing structural cracks in concrete beams, columns, slabs, bridge decks, foundations, retaining walls, tunnels, parking structures, industrial floors, and honeycombed concrete where permanent structural restoration is required.
How Epoxy Injection Grout (ELV) Works
Inspect the Cracks

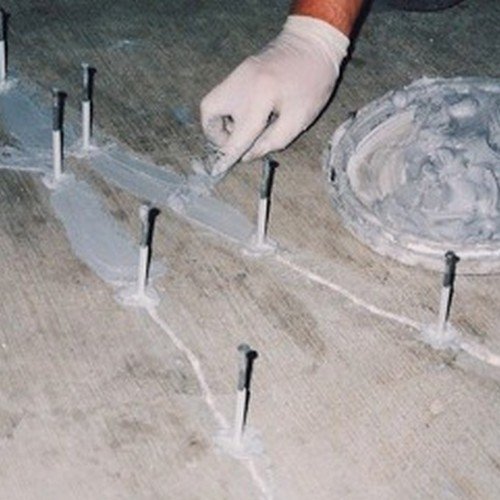

Identify structural cracks and install injection ports at appropriate intervals along the crack line.
Seal the Surface
Seal the crack surface between injection ports to prevent resin leakage during injection.
Mix the Resin
Mix Part A and Part B thoroughly to achieve a uniform ultra-low viscosity epoxy mixture.
Inject the Epoxy
Inject the resin under low pressure until the crack is completely filled and saturated.
Cure & Restore
Allow the epoxy to cure completely, permanently restoring the structural integrity of the concrete.
Inspect the Cracks
Locate structural cracks and install injection ports where required.
Seal the Surface
Seal the exposed crack to ensure efficient pressure injection.
Prepare the Epoxy
Mix both components thoroughly until a consistent resin is achieved.
Inject the Grout
Inject the low-viscosity epoxy to completely fill deep internal cracks.
Cure Completely
Allow the resin to cure, permanently restoring the concrete’s structural strength.
0.05mm
Crack Penetration
100%
Structural Bond
Zero
Shrinkage
Ultra Low
Viscosity
Deep
Injection Repair

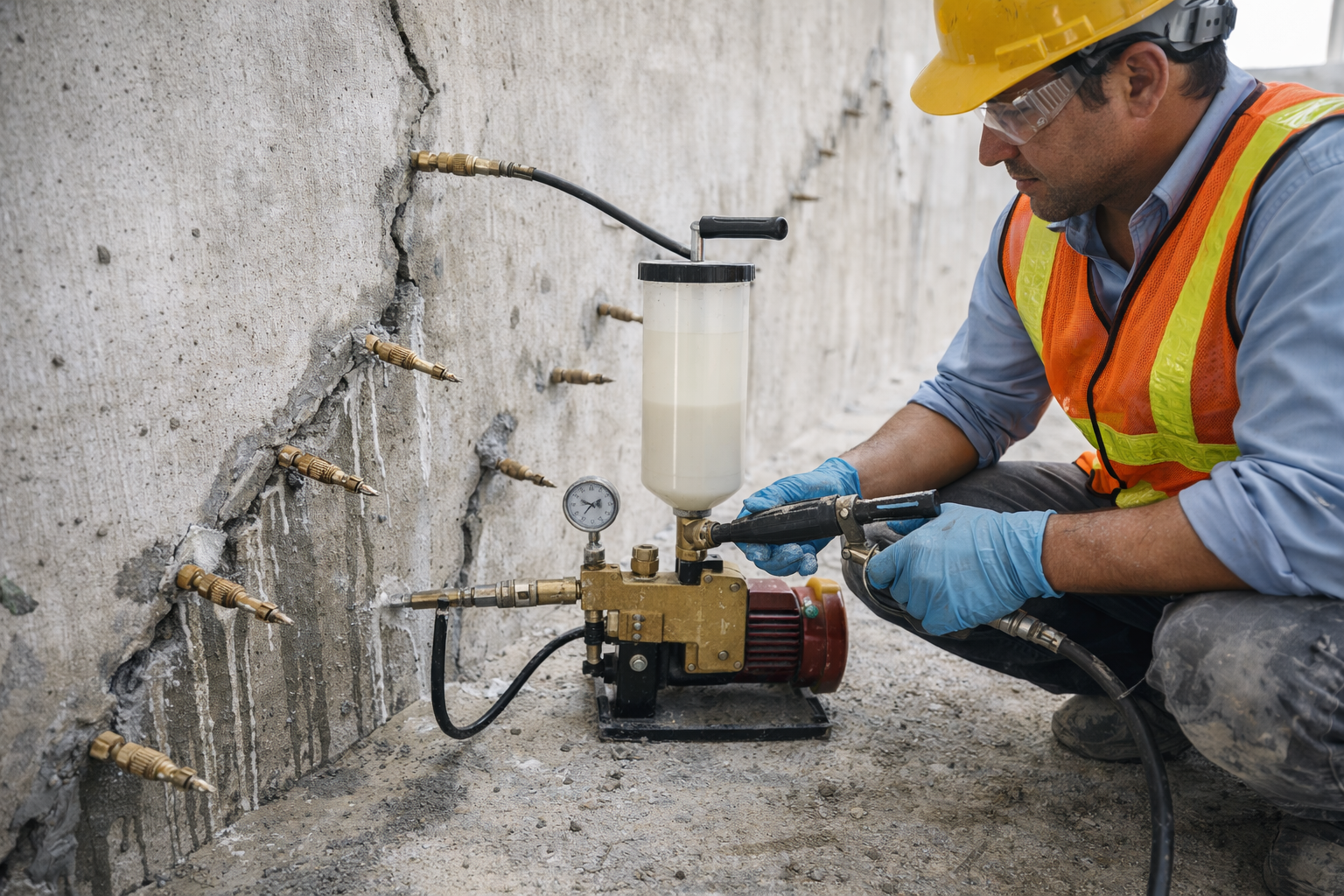

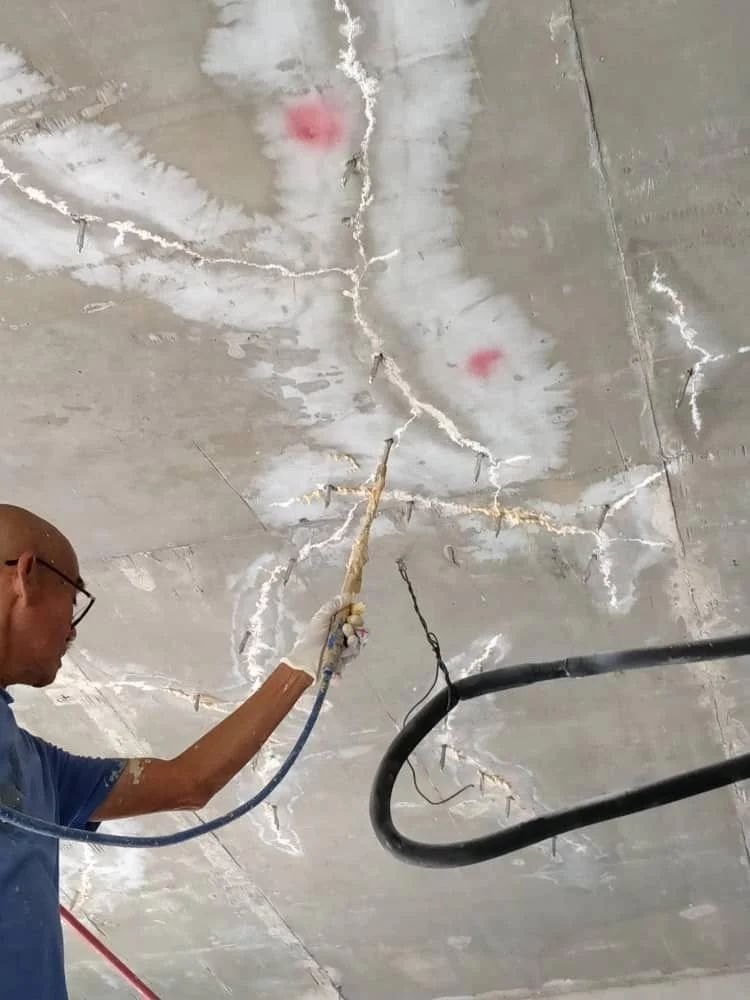

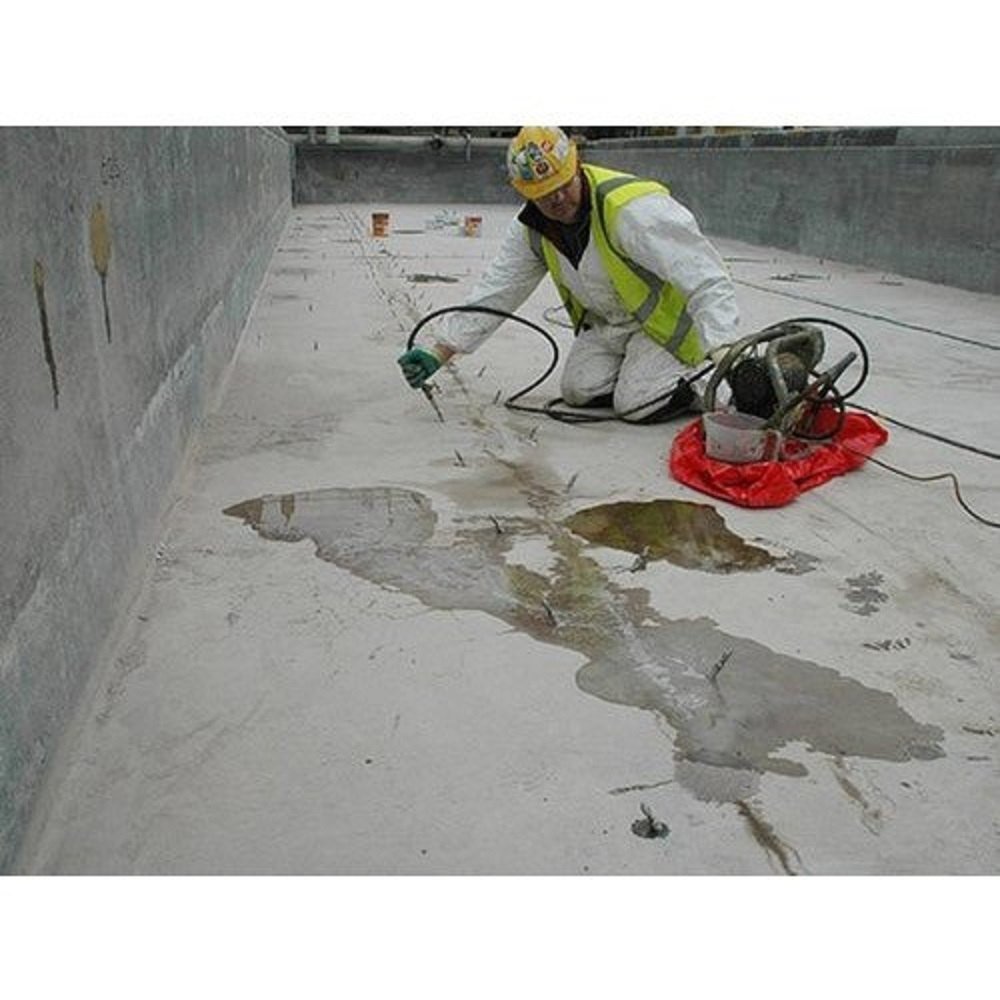

Epoxy Injection Grout In Action
5 Key Features
Ultra-Deep Crack Penetration
Ultra-low viscosity resin penetrates cracks as fine as 0.05 mm, reaching areas where conventional repair materials cannot.
Restores Structural Strength
Creates an exceptionally strong bond that restores concrete to its original monolithic structural performance.
Zero Shrinkage Cure
Solvent-free formulation cures without shrinkage, providing a permanent waterproof structural repair.
Moisture-Insensitive Bonding
Effectively bonds even in damp cracks, making it suitable for basements, foundations, tunnels, and underground structures.
Long-Term Structural Protection
Prevents future moisture ingress while permanently strengthening cracked concrete for long-lasting durability.
